The gate is the part of the fence you touch every day — and across Olathe, RKC Wood Care Pros builds walk gates, double-drive gates, sliding driveway gates, and custom welded-steel-frame gates that swing right, latch clean, and hold for years. Welded steel frames with diagonal cross-bracing, hinges sized above the gate weight plus a 50% safety margin, hinge posts 36 inches deep in poured concrete, drop rod and self-latching hardware where code or HOA requires. Cedar cladding, vinyl, ornamental iron, or aluminum to match the rest of your line. 4.9 stars from 77+ Google reviews.
WHY OLATHE HOMEOWNERS INSTALL NEW GATES
A gate that opens cleanly, latches on the first try, and holds plumb for years starts with the right post depth and the right hardware for the load. The reason most Olathe homeowners call us about a gate is rarely "we need a latch that works." It's the end-of-commute click as the drive gate rolls closed behind the car, the walk gate the dog can't figure out, or the double-drive that finally fits the boat. The gate is the instrument. What you notice every day is everything downstream of it.
An automatic driveway gate turns the end of every commute into 10 seconds instead of 2 minutes. Click, roll in, click closed behind you. No standing in the rain, no fighting a sagging latch, no wondering whether the dog slipped through while you were grabbing groceries. Every single-drive and double-drive gate we install in Olathe ships opener-ready — you can wire it on install day or retrofit a year later.
Self-latching hardware and proper hinge tension mean the walk gate closes behind you automatically. The dog stays in the yard. You stop walking back to check. It's a small detail — one that most Olathe walk gates we repair don't have — and it's the reason the gate feels solved instead of managed.
14 to 20 feet of clear opening for the boat, the RV, the contractor delivery, or whatever's coming next year. Built to the property, not to a standard doorway. Two leaves meet at a center drop rod; both hinge posts go 36 inches deep in concrete; both leaves carry a diagonal cross-brace. Common on estate entries in Cedar Creek and Stonebridge Park.
Most gate failures in Olathe happen at the hinge points after one summer of daily use. Welded frames with diagonal cross-bracing and heavy-duty galvanized hardware hold plumb through years of swing cycles. The hinge post sits 36 inches deep against the Wymore-Ladoga clay cycle. The latch still lines up at year five, and at year ten.
LOCAL CONDITIONS FOR GATES
Gates are the single highest-stress component of any fence install. A gate carries its own weight all day, every day, and cycles through open-and-close thousands of times a year. In Olathe's heavy clay soil and 80+ freeze-thaw cycles per winter, three specific decisions separate a gate that still swings square in year ten from a gate that sags at year two. built to last comes down to these three on every RKC gate we install across Olathe.
Gate posts carry the full weight of the gate plus the lever-arm force of every open and close, thousands of times a year. Olathe's Wymore-Ladoga clay swells roughly 15% when saturated and contracts as it dries — a cycle that repeats across 80+ freeze-thaw events every winter and heaves shallow posts out of plumb. Every gate post we set in Olathe goes 36 inches deep in wet-poured concrete, below the KC frost line. Dry-set or shallow posts are faster on install day and lean within the first winter.
A bolted gate frame flexes at every joint under load, racks out of square within two seasons, and then the latch stops aligning and the gate drags the catch. Every gate we build in Olathe uses a welded steel square-tube frame — powder-coated to match ornamental panels, or left raw and clad in cedar for a wood gate. Welded frames stay square for the life of the gate. Bolted frames don't.
The hinges are the failure point on most gates that sag in Olathe. We spec every hinge to the actual weight of the gate plus a 50% safety factor. Residential walk gates get strap hinges rated to 100+ lbs each. Drive gates get J-bolt strap hinges or ball-bearing pivots rated to 400+ lbs each. Every hinge is hot-dip galvanized, stainless, or powder-coated — zinc-plated hardware rusts out in KC humidity within 18 months. Standard hinges loosen within a season; the right hinges hold plumb for 15+ years of daily swing cycles.
Olathe neighborhoods we've installed gates across include Cedar Creek, Stonebridge Park, Persimmon Hill, Nottingham St. Andrews, and Havencroft — plus infill lots off Blackbob and the newer subdivisions west of K-7. Same engineering, same 36-inch posts, same welded frames on every one.
GATE TYPES
The right gate depends on how you use your property — and what the driveway geometry actually allows. Here are the four gate types we install across Olathe, what each one fits, and real pricing for each. Materials (cedar, vinyl, ornamental iron, aluminum) are swappable within each category; the frame and post engineering stay the same.
Most-installed gate type in Olathe
A pedestrian walk gate tied into your privacy or picket fence line — sized for a laundry basket, a trash bin, or a kid on your hip. Welded square-tube frame, heavy-duty strap hinges, gravity or drop-rod latch. Self-closing hardware when a dog or pool is behind it. Matches the cedar, vinyl, or iron your Olathe fence is already built from.
Standard Olathe driveway width
A single-leaf swing gate for a standard Olathe driveway. Welded steel frame, diagonal cross-brace from the bottom hinge corner to the top latch corner, and heavy-duty J-bolt or ball-bearing hinges rated above the gate's weight. Hinge post goes 36 inches deep in wet-poured concrete against Wymore-Ladoga clay — same depth we use on every fence post we set in Olathe.
Trailers, boats, multi-vehicle entries
Two leaves swinging from opposite hinge posts, meeting in the middle at a center drop rod. Cuts the lever arm in half vs. a single 16-foot leaf, which matters when the westerly wind runs through an open Olathe lot. Standard on wider driveways, estate entries, and properties that need boat, RV, or contractor-trailer clearance. Both hinge posts set 36 inches deep, both leaves cross-braced.
For driveways without swing clearance
When the driveway approach is steep, the lot is narrow, or a retaining wall blocks the swing arc — a sliding gate rides a V-track or cantilevers on rollers to the side instead. Zero swing clearance required. A good fit for sloped Olathe lots where a swing gate would catch on rising pavement, or infill properties where the fence line sits close to the driveway edge.
OLATHE GATE PRICING
Gate pricing in Olathe depends on gate type, material, size, and whether you're adding automation. Every quote includes welded steel frame construction, galvanized heavy-duty hardware, and a 36-inch hinge post set in wet-poured concrete. Below are the three configurations we quote most often for Olathe properties.
$300–600
installed
Cedar or pressure-treated pine. Welded frame, strap hinges, gravity or drop-rod latch.
$650–1,800
installed
Wood $650–1,200 · Iron $900–1,800. Welded frame, diagonal cross-brace, ball-bearing hinges.
+30–50%
over single-drive
Custom widths, matched finials, specialty hardware, or automation pre-wire quoted on site.
Automatic opener add-ons start at $1,800 installed. See our Automatic Gates & Openers service for full opener options and configurations. Every Olathe gate estimate is free, written, and itemized — call (913) 286-1091 or request an on-site walkthrough.
OUR PROCESS
Four steps from the phone call to the first swing. Most Olathe gate projects run 1 to 3 weeks start to finish. Install days themselves are short — walk gates are often same-day, drive gates are one to two days. The longer stretch is the HOA approval cycle in Cedar Creek, Stonebridge Park, and similar Olathe subdivisions, which we handle on your behalf. Here's what each step actually looks like on a gate install in Olathe.
Josh walks your Olathe property, measures the actual opening (rarely what the homeowner remembers it being), and confirms gate type, swing direction, and clearance. We review hardware options — strap vs. ball-bearing hinges, latch style, opener-ready mounting — and put together a written estimate the same week. Every Olathe gate estimate is free, itemized, and lists the hinge brand, post depth, and frame material. No verbal quotes, no hardware figured out on install day.
Most Olathe gate installs don't require a city permit on their own, but fence-and-gate replacements covering more than 50% of a run do — we pull the City of Olathe Building Inspections permit whenever one applies. HOAs in Cedar Creek, Stonebridge Park, Persimmon Hill, Nottingham St. Andrews, and most post-1990 Olathe subdivisions require architectural review for gate changes. We prepare the submission packet — elevation drawing, material specs, hardware list — and wait for the approval letter before we break ground.
Hinge posts go in on day one, 36 inches deep in wet-poured concrete, left to cure overnight. The welded frame and panels install on day two once the footings are set. Ball-bearing or strap hinges are mounted and adjusted on site — not pre-set at the shop — so the gate swings square against the actual ground slope and latches cleanly to the actual catch. Most Olathe walk gates are done in a single day; drive gates typically take two.
Before we take final payment, we swing the gate open and closed ten times and watch every hinge under load. Any drag, any scrape, any latch miss — adjusted on the spot. Because new concrete footings settle slightly in the first month, we come back at 30 days for a free adjustment pass. And we show you how to adjust the hinges yourself if the gate ever needs a quarter-turn tweak later. Most Olathe homeowners never need to — but you'll know how.

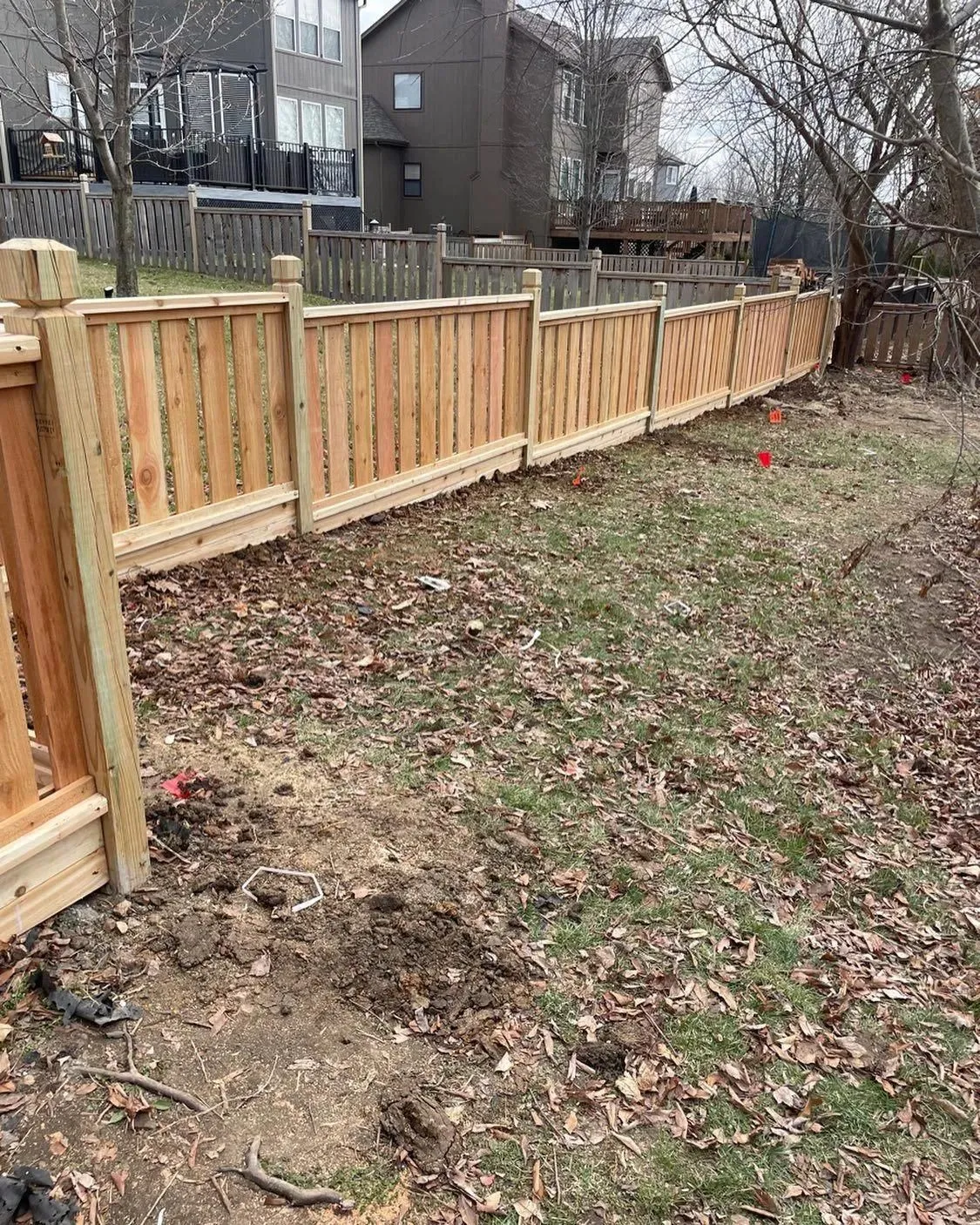

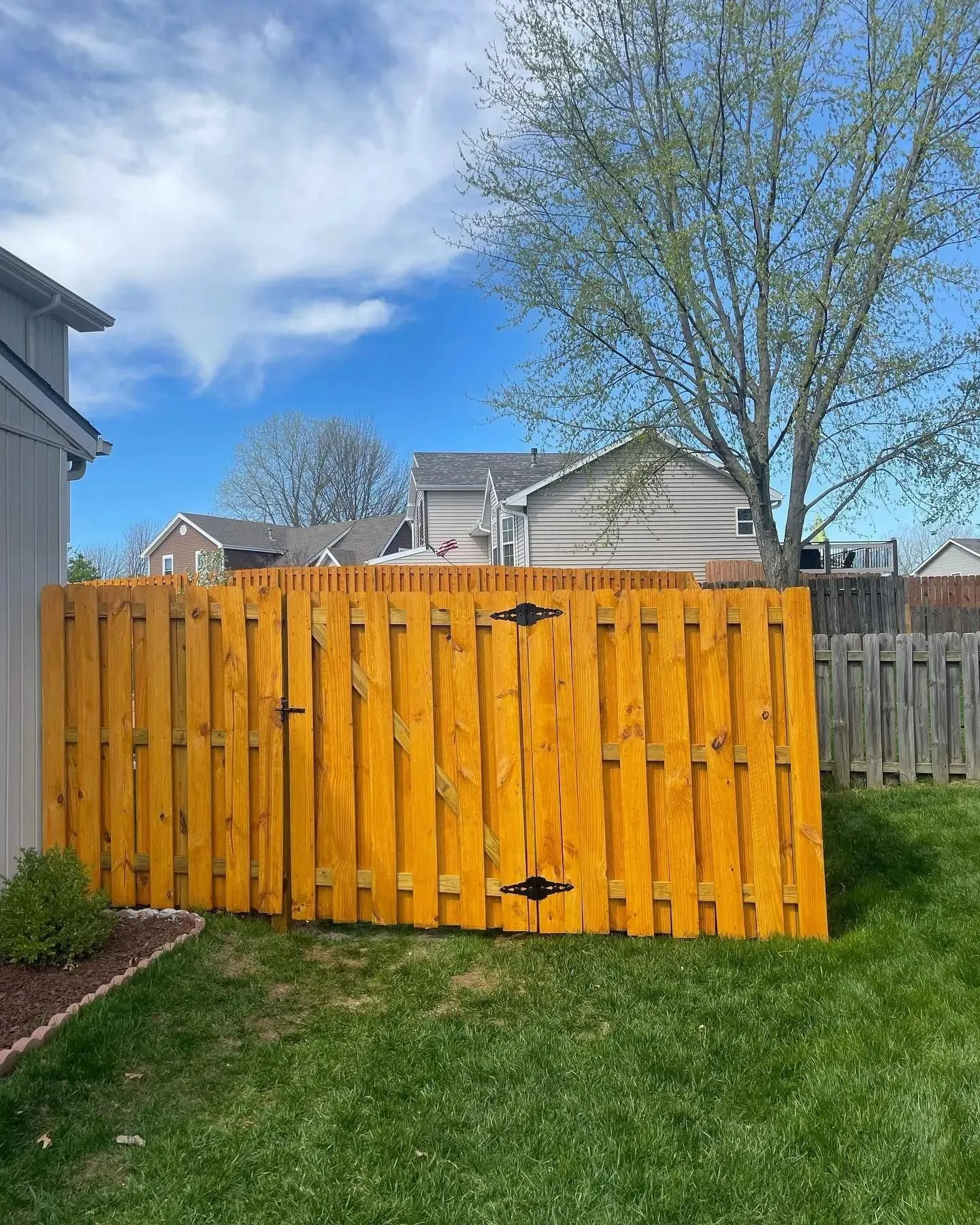

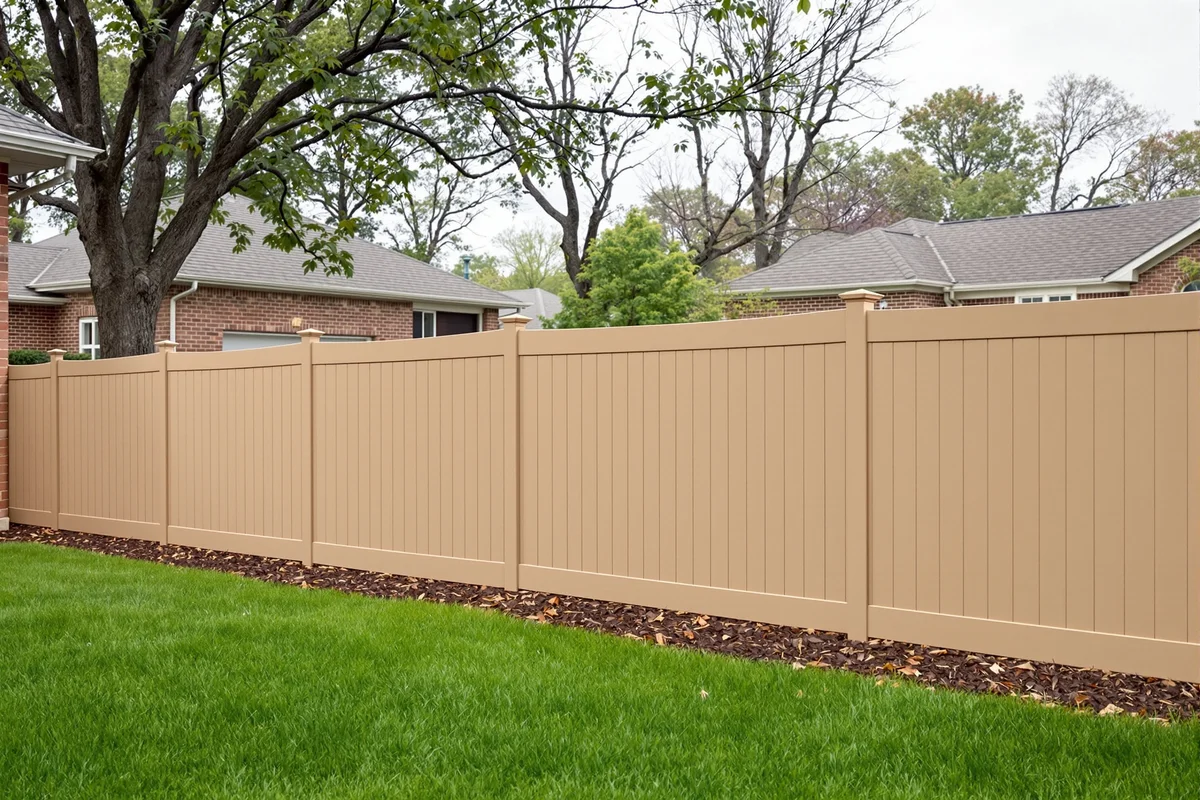

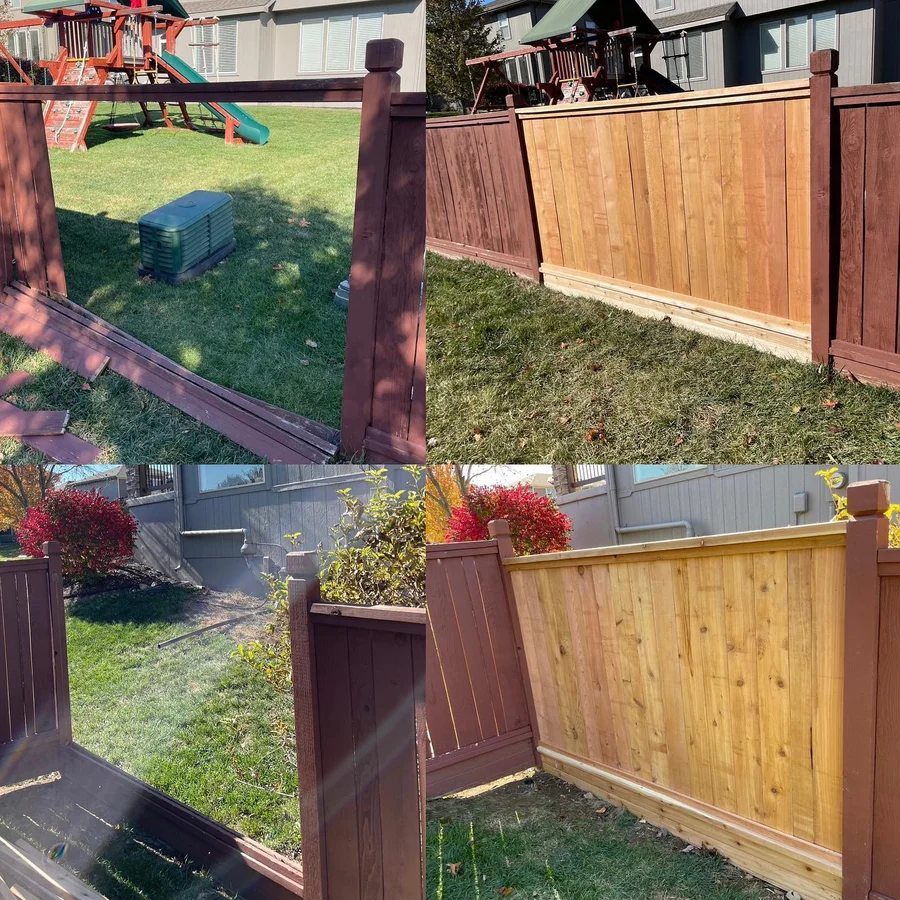

RECENT OLATHE GATE INSTALLS
OLATHE GATE REVIEWS
Three Olathe homeowners — a re-hung walk gate, a storm-tested cedar single-drive, and a Cedar Creek HOA iron walk gate — on what their gate project actually looked like. We've installed 400+ fences and gates across the Kansas City metro since 2021, and a healthy share are right here in Olathe. Every review below is tied to a specific Olathe gate install.
We had a walk gate that sagged from day one with the last contractor. RKC pulled the post, set it deeper in concrete, and built us a new welded gate with strap hinges. Closes perfectly every time, and the latch still lines up two years in.
Josh built us a 12-foot cedar single-drive gate for our driveway — welded steel frame clad in cedar to match the privacy run. Hinge posts went in 36 inches deep in wet concrete. Survived a 60-mph wind event a month later without flinching. Latch still closes square.
Our HOA in Cedar Creek had specific hardware requirements for an ornamental iron walk gate and RKC handled the architectural review submission on our end. Approved first round. Install was clean, permit paperwork was done before the crew showed up, and the gate swings exactly plumb.
OLATHE GATE QUESTIONS
Gate installation in Olathe comes down to type and sizing, permit and HOA clearance, and hardware spec. Below are the questions Olathe homeowners actually ask during the estimate — grouped by topic, each answer specific to Olathe permitting, post-1990 HOAs, and Johnson County pricing. If your question isn't here, call (913) 286-1091 and ask.
